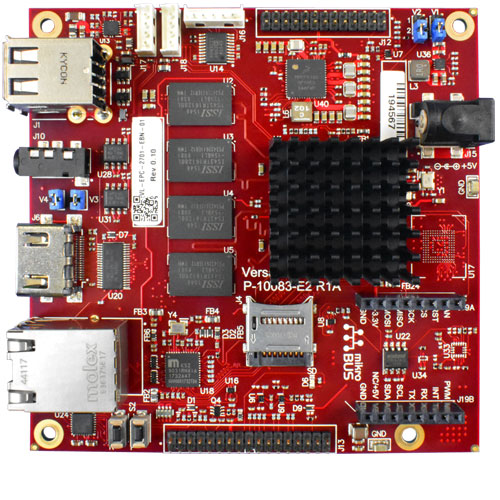

Rugged Low Power i.MX6 ARM Cortex-A9 Single Board Computer
The Zebra products from VersaLogic are complete ARM based embedded computers featuring power-efficient single- or dual-core NXP i.MX6 processors. They are delivered tested and ready for deployment into demanding applications that require rugged power-efficient solutions with long-term availability.
Zebra is designed around the industry standard COM-Express footprint and mounting points, which simplifies installation and upgrading in the future. Unlike ARM-based "modules", the Zebra products are a complete board level computer. Additional carrier boards, connector boards, or I/O expansion are not required for operation. Zebra is delivered with on-board RAM, ready to plug-in and run.
Applications include: automation, avionics, gateway, in-vehicle, monitoring, simulation, and audio visual.
Technical
- Single- or dual-core i.MX6 Processor
800 MHz performance with very low power consumption
- Extended Temperature Versions
-40° to +85°C operation for harsh environments
- MIL-STD-202G
Qualified for high shock and vibration environments
- Network Support
Gigabit Ethernet (GbE) with remote boot support
- System RAM
Up to 4 GB soldered-on RAM for harsh environments*
- On-board I/O
Two USB 2.0 ports support keyboard, mouse, and other devices. Two serial ports, eight GPIO, CAN bus, Audio, SPI, and I2C support.
- Power input
5V power input
- Video Output
HDMI video output
- MicroSD Socket
Supports microSD card solid-state drives
- Flash*
Up to 32 GB of on-board eMMC flash storage
- Expansion
MikroBUS™ socket
- Accelerometer*
Integrated 6-axis e-compass (accelerometer / magnetometer)
- Fanless Operation
No moving parts required for CPU cooling
- Standardized Mounting
Same mounting pattern as 95 mm x 95 mm COM Express Compact products
- Software Support
Compatible with a variety of popular Arm operating systems including Linux and Android™.
Support includes VersaAPI software for onboard I/O devices.
-
-
-
-
-
Specifications
See datasheet for full specifications
Technical documents
Ordering information
This product is in early release and subject to very limited availability. The preliminary information on this page may not be complete or accurate relative to the final features or specifications of the product. Please contact
Sarsen Technology for details on this product.
