Condor 3000

Overview

High Performance XMC graphics cards with GPGPU capability

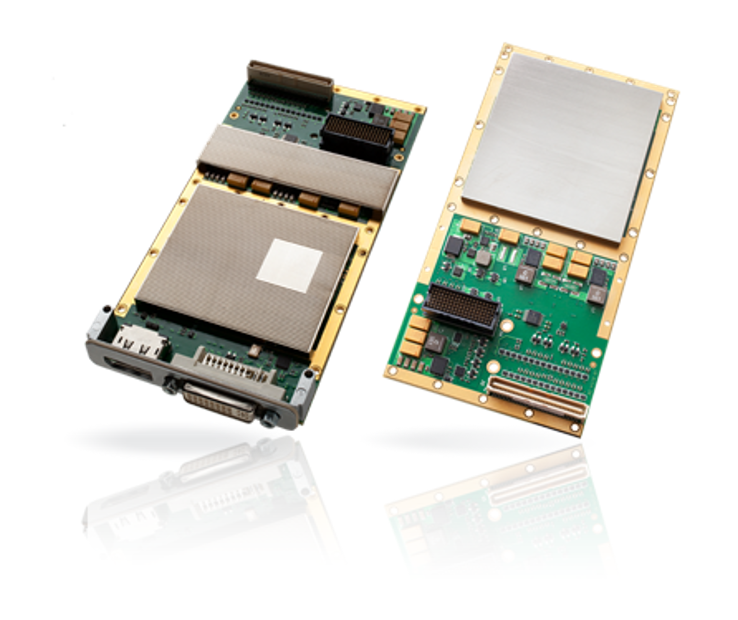

The Condor 3000 XMC Series products from EIZO Rugged Solutions are leading edge XMC form factor graphics/video cards based on AMD's Radeon E6760 GPU. The built-in video decoder enables dual HD decoding of H.264, VC-1. MPEG4 and MPEG2 compressed video streams.

Technical

1 GB frame buffer
XMC form factor
2D/3D graphics compatibility
OpenGL 4.1/DirectX 11
Front/Rear IO (DVI, VGA, DisplayPort)
Up to 2560 × 1600 Dual-Link resolution (rear) or up to 1920x1200 Single-Link (front of rear)
Up to 2560 × 1600 resolution
Comprehensive customer care
Ideal for embedded applications
Long term product availability

Specifications

Graphics Processor	AMD Radeon E6760 GPU supporting OpenGL 4.1 and DirectX 11
Interface	XMC form factor, 8 Lane, PCI Express 2.1
Graphics Memory	128-bit wide, 1GB GDDR5 memory
Maximum Video Output Resolution	2560 × 1600 Dual-Link DVI, 1920x1200 Single-Link and 2048 × 1536 Component
Floating Point Performance (single precision, peak)	576 GFLOPS, 480 shaders
Shader Model	5.0
OpenCL/GPGPU computing	OpenCL 1.1, DirectCompute 11
Unified Video Decoder (UVD)	UVD3 for H.264, VC-1, MPEG-2, MPEG-4 part 2 decode
Video Outputs	Single-Link DVI, VGA and Dual Mode DisplayPort (2 connectors on Front—DVI-I and DisplayPort)
Video Outputs	Dual Link DVI-D, Single-Link DVI, VGA and Dual Mode DisplayPort (Rear) Note: Dual-Link DVI can be converted to 2 Single-Link DVI
Operating Temperature	0°C to 55°C (Standard) -40°C to 70°C (Rugged Convection Cooled) -40°C to 85°C (Rugged Conduction Cooled)
Power Rating	43 Watts (Can be configured to be as low as 17W)
Humidity	95% without condensation
Software/Platform Support	Windows or Linux
Software/Platform Support	RTOS support — VxWorks (others as needed)

Ordering information

There are a number of different configurations available. Please contact Sarsen Technology to discuss your requirements.

View all configurations (pdf)
