dspblok 21489

Overview

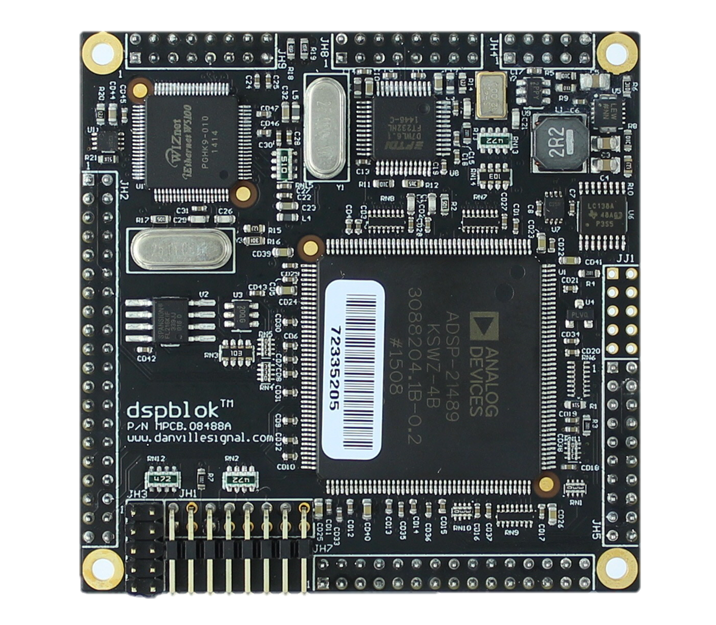

Analog Devices ADSP-21489 SHARC DSP Module

The dspblok™ 21489 is a highly integrated DSP module that incorporates an Analog Devices’ ADSP-21489 SHARC DSP operating at 400 MHz, flash, EEProm and a switching power supply to support the core voltage requirements.

Danville dspblok DSP Engines are the driving force behind many of Danville’s standalone products such as the dspstak, dsprak, dspMusik and dspInstrument product lines.

Specifications

The dspblok™ 21489 is a highly integrated DSP module that incorporates an Analog Devices’ ADSP-21489 SHARC DSP operating at 400 MHz with flash and EEProm. An onboard switching power supply supports the core voltage requirements of the DSP so that only 3.3V is required to power the dspblok.

The ADSP-21489 peripherals include SPORTS (8), SPI(2), TWI (I2C), UART, timers, PWMs, JTAG and an external data bus. USB is provided by an FTDI FT232H, which is a high speed USB device with excellent driver support. Each dspblok 21489 also includes a unique MAC address (IEEE EUI-48). These peripherals are available via 2mm headers on the dspblok.
