dspMusik 2-8

Overview

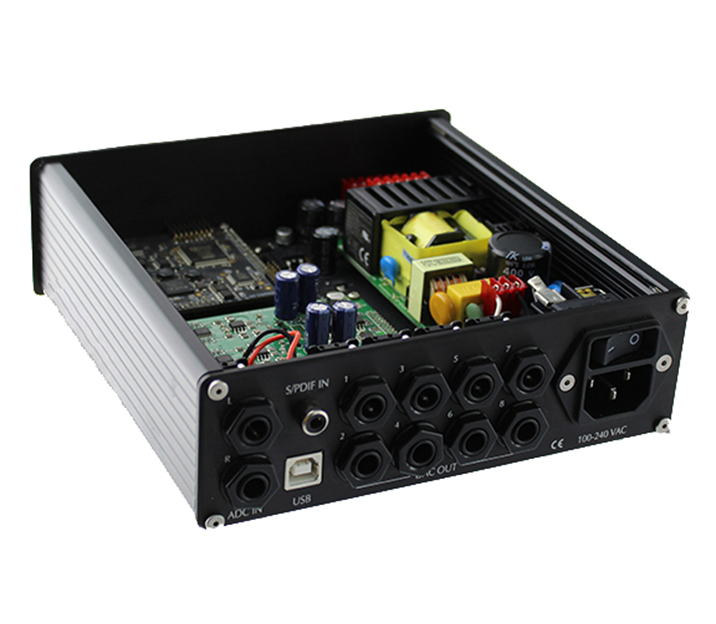

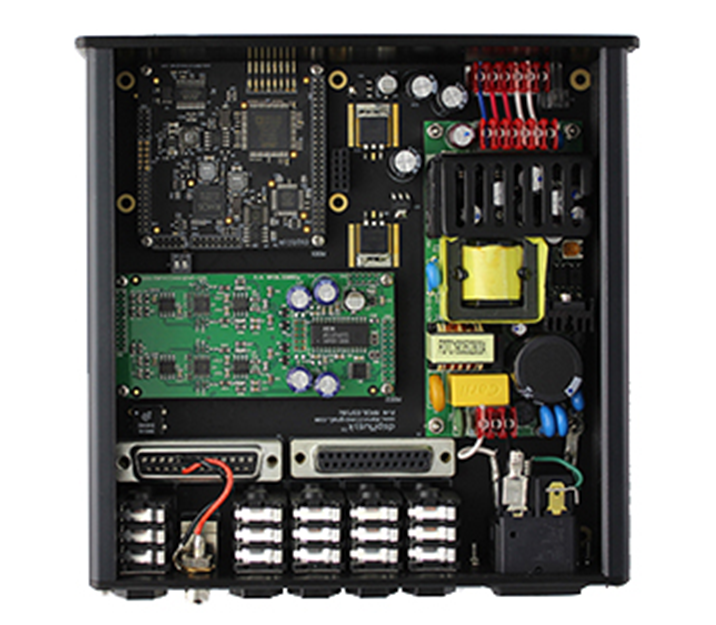

Stereo In, Eight Out Multi Channel DAC Platform

The dspMusik™ 2/8 from Danville Signal Processing is a stereo in, eight out multichannel DAC platform, suitable for high performance DSP loudspeaker crossovers, music decoders and many other high quality audio algorithm applications.

The dspMusik 2/8 platform delivers audiophile performance, featuring state-of-the-art components from Analog Devices, XMOS, AKM and Wolfson. Each part has been carefully selected to build a precisely integrated system.

Technical

Up to 192 kHz sample rate
S/N in excess of 120 dBA
Balanced/Unbalanced I/O
USB Audio Class 2
Analog Devices SHARC DSP
Low phase jitter clocks
AKM ADC
Wolfson DAC
Optional analog input module
Optional custom configurations

Specifications

DSP:

Analog Devices SHARC ADSP-21479

Inputs:

USB Audo Class 2: XMOS XS1-U8A

SPDIF

Optional Analog Input Module

ADC: AKM AK5394A (S/N > 120 dBA)

Outputs:

DACs: Wolfson WM8742 (S/N > 120 dBA)

Configurable Input / Output:

Balanced or unbalanced circuits

Consumer (-10dBV) or Pro (+4dBu) levels

Standard 6.3mm TRS connectors

Optional Tascam style DB-25 connections

Operating System Support:

Microsoft Windows XP, 7, 8 & 10 (included)

Apple OS X (native support)

Input Power (Complete Version)

IEC Mains Connector

Autoswitching 115/230VAC, 50/60Hz

Technical documents

Danville dspMusik Datasheet

Ordering information

The dspMusik 2/8 platform is available in two configurations: PCB Assemblies (with or without ADS and/ or TRS) and two Complete with Housing versions (with or without ADC).

A variation using the ADSP-21469 DSP is also available.

Please contact Sarsen Technology for more information.
