• Integrated XPedite5205: NIST FIPS 140-2 Overall Level 1 validated on certificate #2242
• Integrated XPedite5205: NIAP Common Criteria Certified
• Runs Cisco IOS® software
• Cisco® Unified Communications Manager Express (CME) support
• Cisco® Mobile Ready Net, which allows for mobile ad hoc networking and radio aware routing
• Hardware acceleration and encryption
• Integrated threat control using Cisco IOS® Firewall, Cisco IOS® Zone-based Firewall, Cisco IOS® Intrusion Prevention System (IPS), and Cisco IOS® Content Filtering
• Identity management using authentication, authorisation, and accounting (AAA) and public key infrastructure
• Dimensions: 8.2 in. (L) x 4.88 in. (W) x 1.85 in. (H)
• Conduction cooling

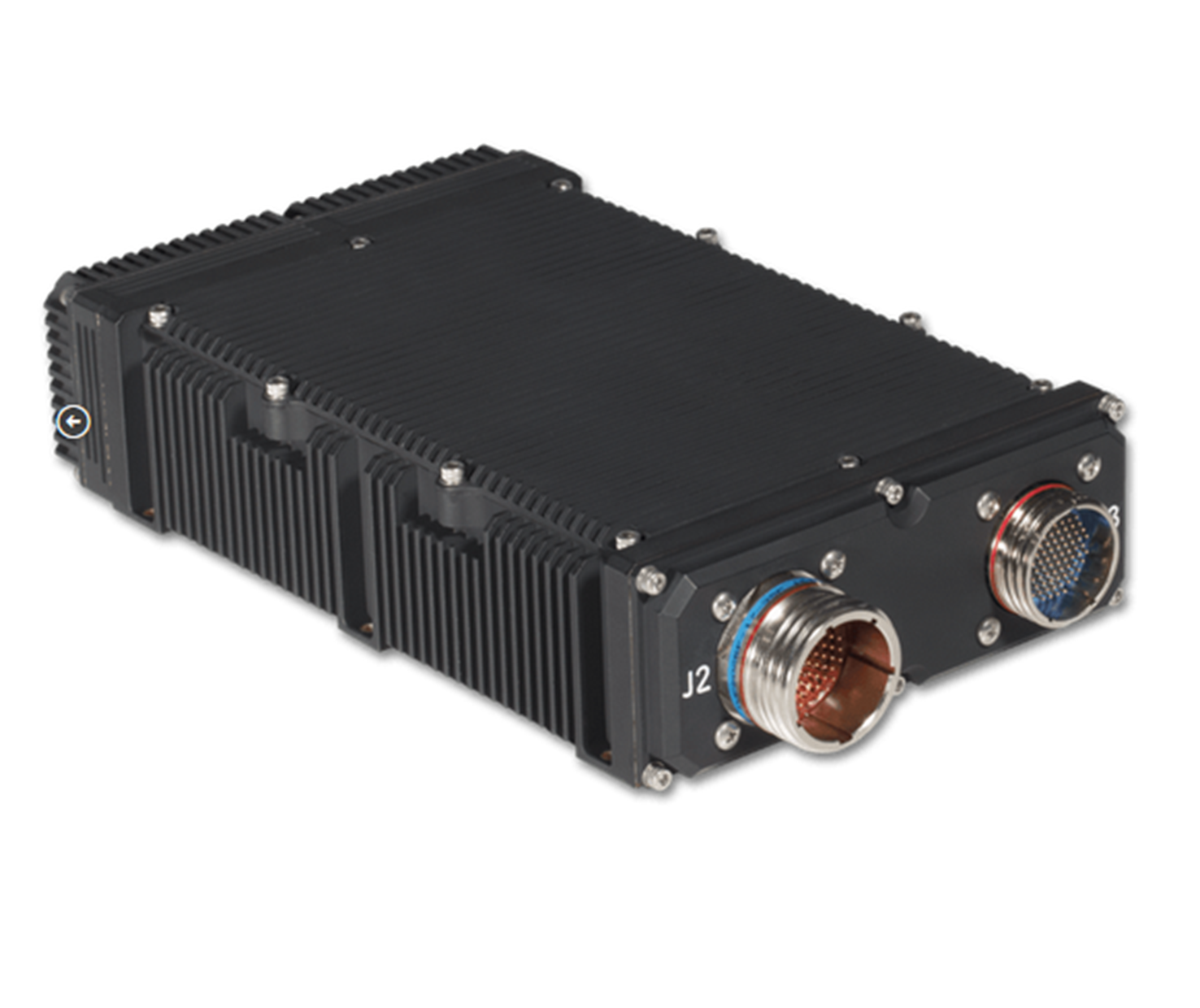

Physical Characteristics

Dimensions do not include connectors

• Dimensions: 8.2 in. (L) x 4.88 in. (W) x 1.85 in. (H)
• Weighs 4.0 lbs.
• Environmentally sealed

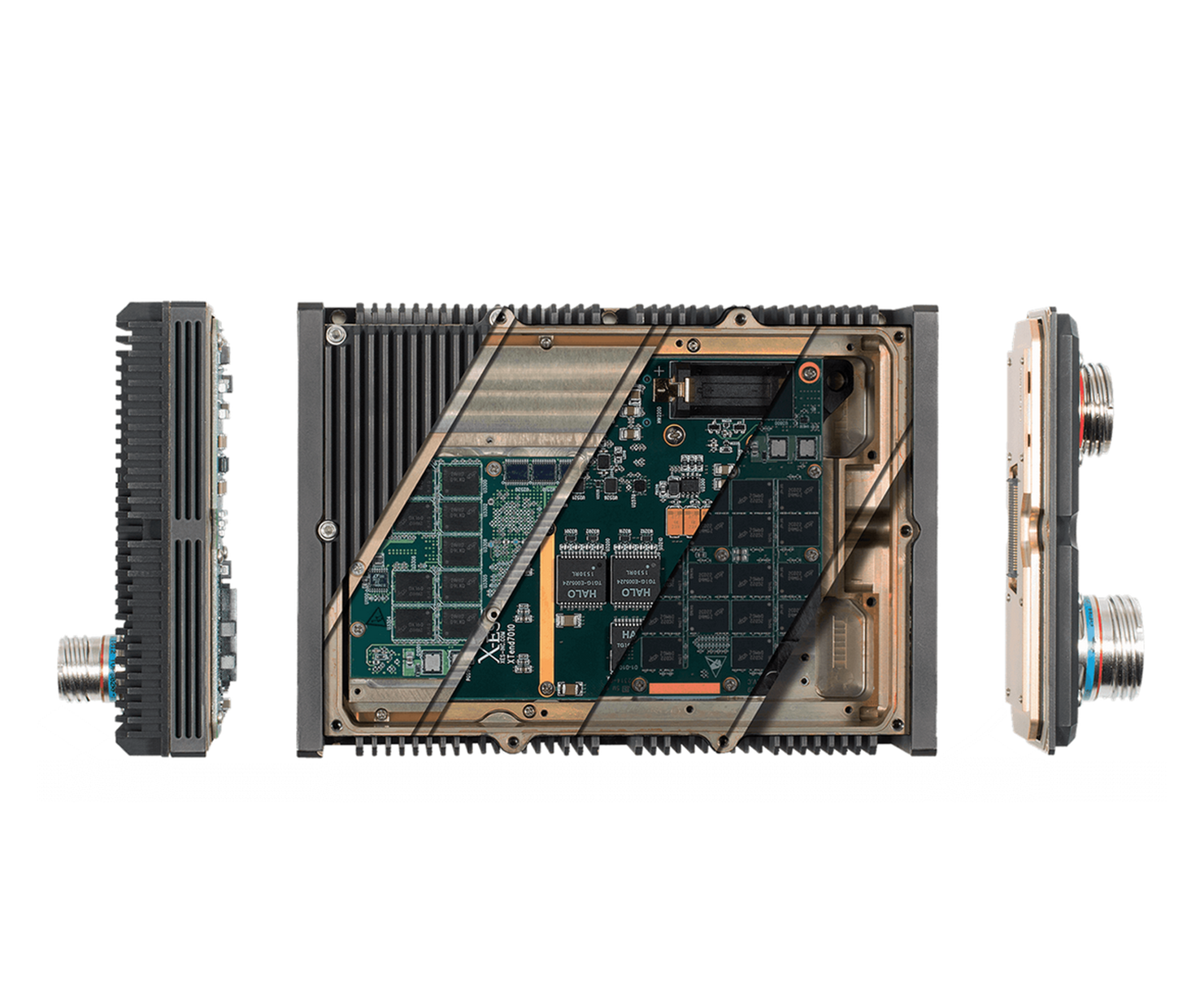

Configuration

• Includes XPedite7450 Intel® Core™ i7 ruggedized COM Express® module
• XPedite5205 Cisco IOS® router

System External I/O (Optional)

• Reset
• Non-volatile write protection
• Primary/secondary BIOS flash select
• Battery input for real time clocks (RTCs)

XPedite5205 External I/O

• Four 10/100/1000BASE-T Ethernet ports
• One console RS-232 serial port
• One auxiliary RS-232 serial port
• D38999 circular connector

XPedite7450 External I/O

• Two 10/100/1000BASE-T Ethernet ports
• Two RS-232/422/485 serial ports
• Two USB 2.0 ports
• One VGA display interface
• One DisplayPort/DVI/HDMI display interface

Accessories

• Development kits are available. Please contact your account manager.

Power Supply

• Integrated MIL-STD-704F 28 VDC input voltage power supply
• Integrated MIL-STD-461 EMI filtering
