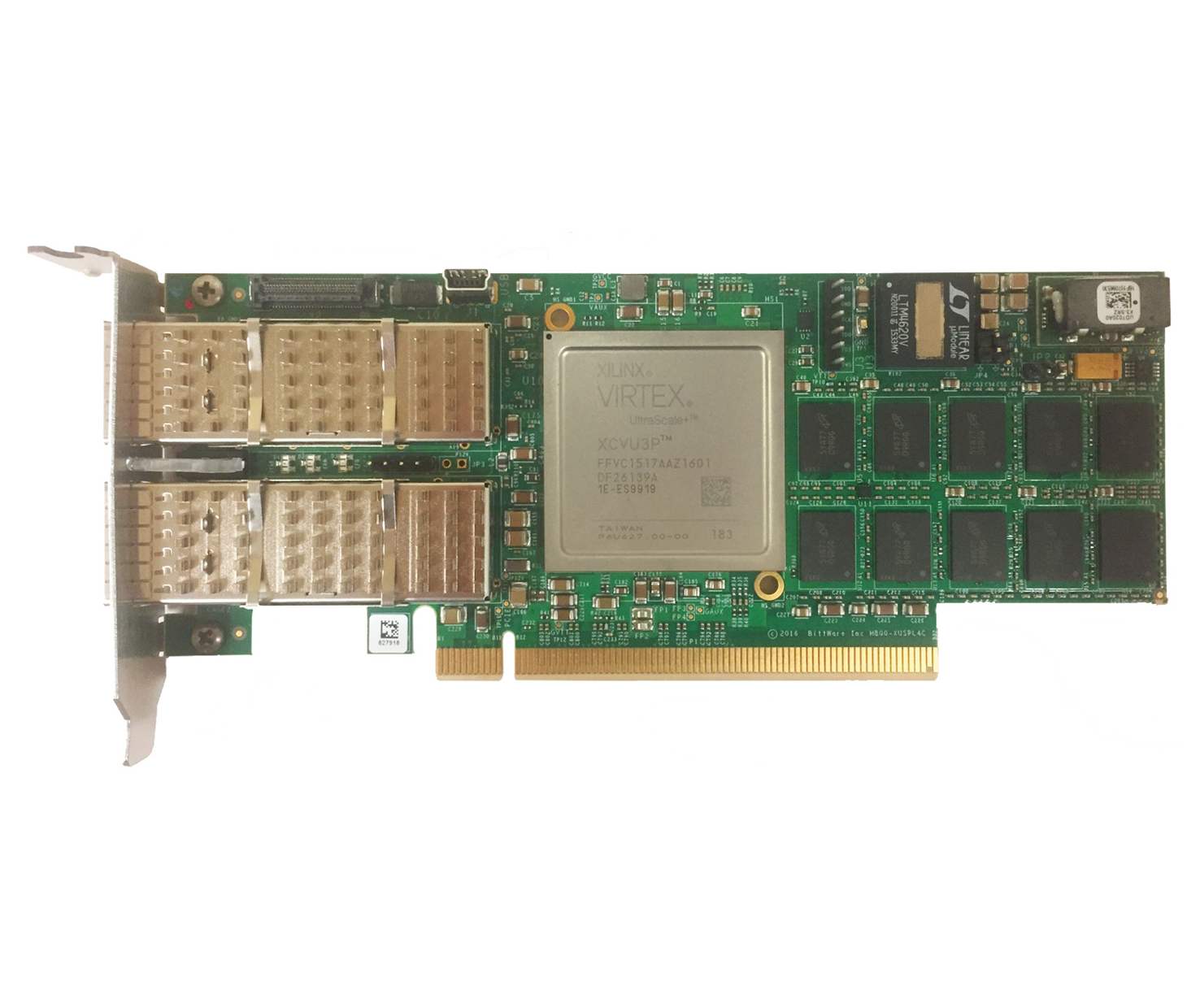

• Xilinx Virtex UltraScale+ VU3P
• PCIe x16 interface supporting Gen1, Gen2, or Gen3
• PCIe x8 interface supporting Gen4
• Two QSFP28 cages for 2x 100GbE, 2x 40GbE, 8x 25GbE, or 8x 10GbE
• Memory: up to 32 GBytes of DDR4 SDRAM with ECC (x72)
• Board Management Controller for Intelligent Platform Management
• Precision timestamping support
• Utility I/O: USB 2.0

Board Specifications

FPGA

• Virtex UltraScale+ VU3P
• 24x GTY transceivers at 32.75 Gbps
• 862K logic elements
• 115 Mb of embedded memory
• 2 integrated PCIe cores
• 2,280 DSP slices with 27×18 multipliers

On-Board Memory

• Two banks of up to 16 GB DDR4 (x72)
• Flash memory for booting FPGA

PCIe Interface

• x16 Gen1, Gen2, Gen3 interface direct to FPGA
• x8 Gen4 to FPGA

USB Header

• Micro USB port (USB 2.0) for BMC access and programming Flash

QSFP Cages

• 2 QSFP28 (zQSFP) cages on front panel connected directly to FPGA via 8 transceivers
• Each supports 100GbE, 40GbE, 4x 25GbE, or 4x 10GbE
• Backward compatible with QSFP and can be optionally adapted for use as SFP+

Timestamping

• 1 PPS input/output
• Reference clock input/output

Board Management Controller

• Voltage, current, temperature monitoring
• Power sequencing and reset
• Field upgrades
• FPGA configuration and control
• Clock configuration
• I2C bus access
• USB 2.0
• Voltage overrides

Size

• Low profile (Half-height, half-length) PCIe slot card; x16 mechanical

Development Tools

System Development

• BittWorks II Toolkit – host, command, and debug tools for BittWare hardware; Matlab API; source code porting kit also available

FPGA Development

• FPGA Example Projects
  • PCIe Gen3x16 Base Project
  • PCIe DMA
  • DDR4
  • SerDes (iBERT)

• Xilinx Tools
  • Vivado® Design Suite
  • USB to JTAG converter
