XUPVV4
Overview

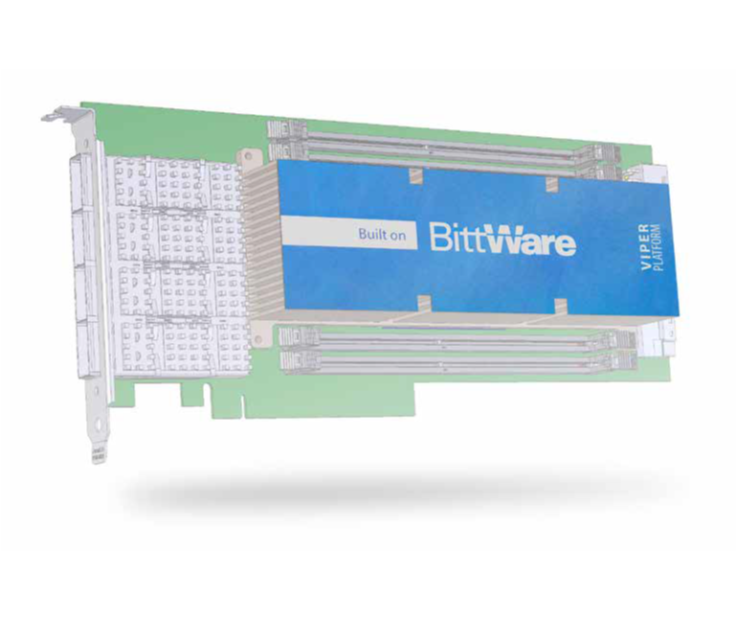

Xilinx UltraScale+ VU13P FPGA 3/4-Length PCIe Board with Quad QSFP and 512 GBytes DDR4 on BittWare Viper Platform
The XUPVV4 from BittWare is an UltraScale+ VU13P FPGA-based PCIe card, ideal for high performance computing and high-density datacentre applications.
Based on the Xilinx UltraScale+ VU13P, this FPGA gives designers incredible performance potential with 3.8M logic elements, and a power density that creates a thermal management issue. The XUPVV4 meets this challenge with BittWare’s Viper platform, supporting large FPGA loads, up to 512 GBytes DDR4, and 4x 100 Gbps Ethernet.
Viper Platform and Lidless Package
BittWare’s Viper platform uses advanced computer flow simulation to drive the physical board design in a thermals first approach, making use of heat pipes, airflow channels, and arranging components to maximise the limited available airflow in a server.
Viper boards are passive as standard, but active cooling is also available. The XUPVV4 features the D2104 lidless package from Xilinx, which allows the heat pipes to contact the die directly instead of through the heat spreader lid.
